Plane frame analysis in your browser
Draw a 2D frame, add supports and loads, and read the shear, moment and axial force diagrams, the reactions and the deflected shape. On your laptop or your phone, nothing to install.
What it does
Draw the structure
Place nodes and connect them with beam members or truss bars. Snap to a grid, drag, pinch or scroll to zoom.
Supports and loads
Fixed, pinned and roller supports, skewed supports, springs and support settlements. Point loads, moments and distributed loads.

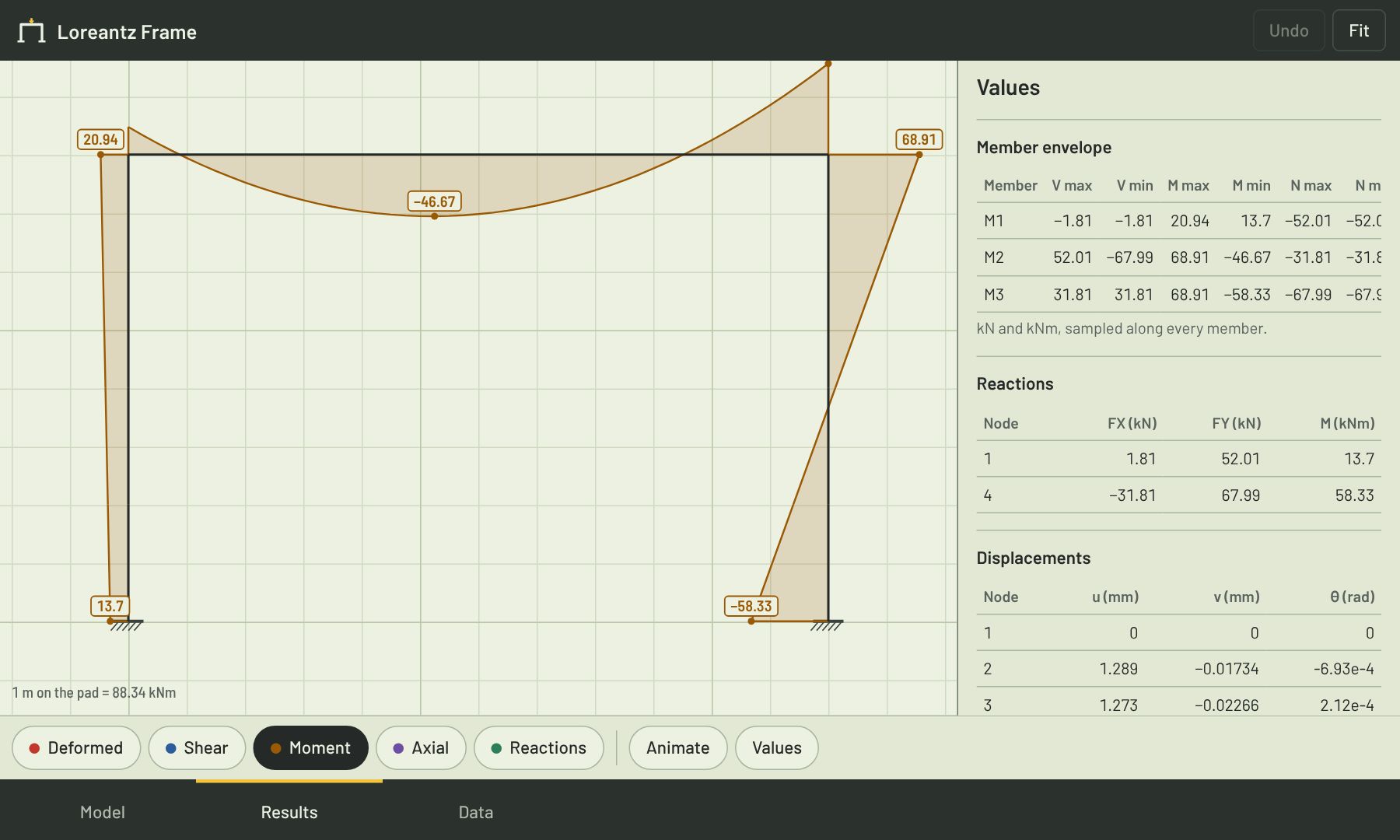

Read the results
Shear, moment and axial force diagrams, reactions, member force envelopes, node displacements and an animated deflected shape.
Works with MATLAB input
Paste or open an input block written for the MATLAB frame script, or copy the model out as one. Unstable structures are reported, not solved.
Pricing
1 month
Access for 1 month
3 months
Access for 3 months
12 months
Access for 12 months
Prices in Indonesian rupiah. One account works on up to two devices at a time. Each plan starts on the day you pay; buying again adds the months to the time you have left.
How to buy
- Create an account with your email and a password.
- Choose a plan on your account page and pay through Midtrans with GoPay, ShopeePay or QRIS (OVO, DANA, LinkAja or any bank app).
- Your account is active as soon as the payment goes through. Open the app on up to two devices.
Contact
Questions, problems with a payment, or a lost password: michael@loreantz.com
